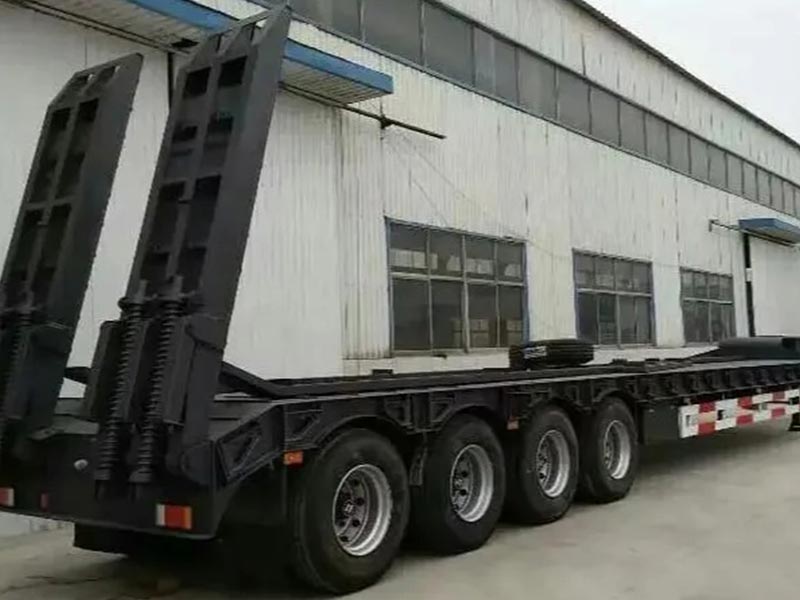

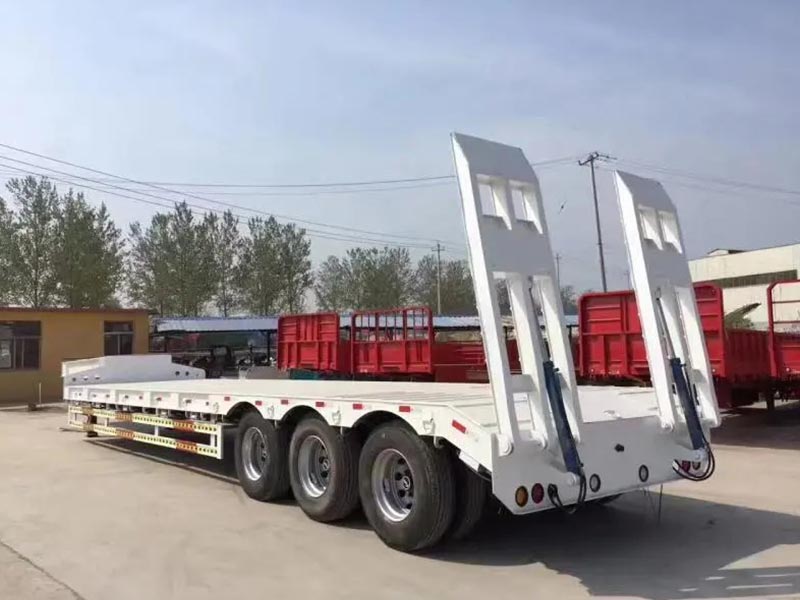

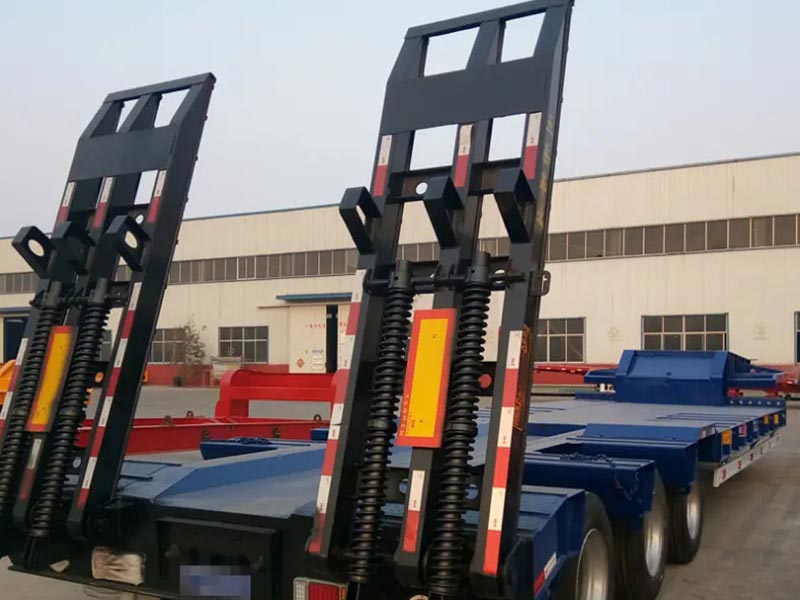

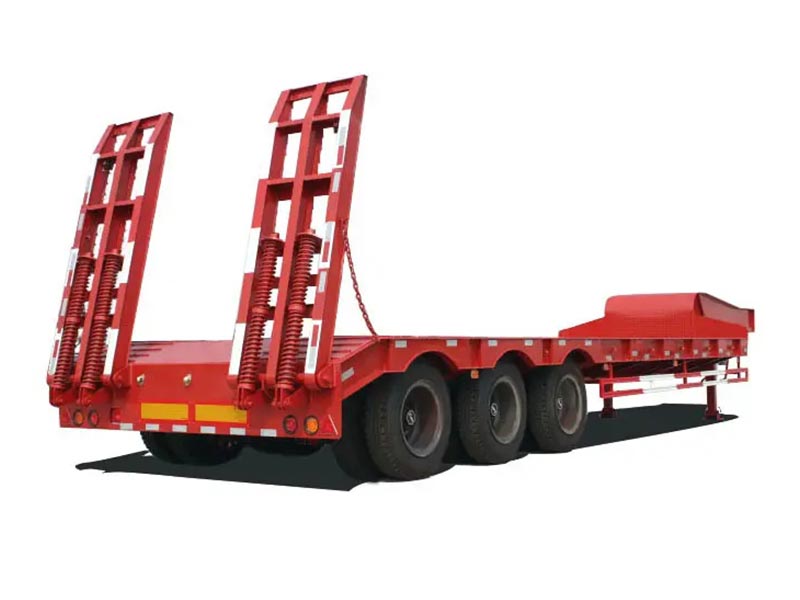

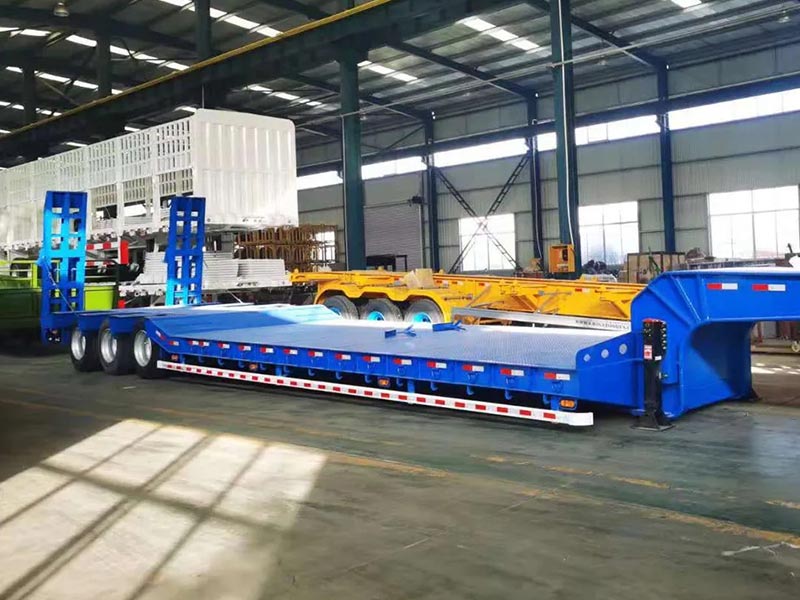

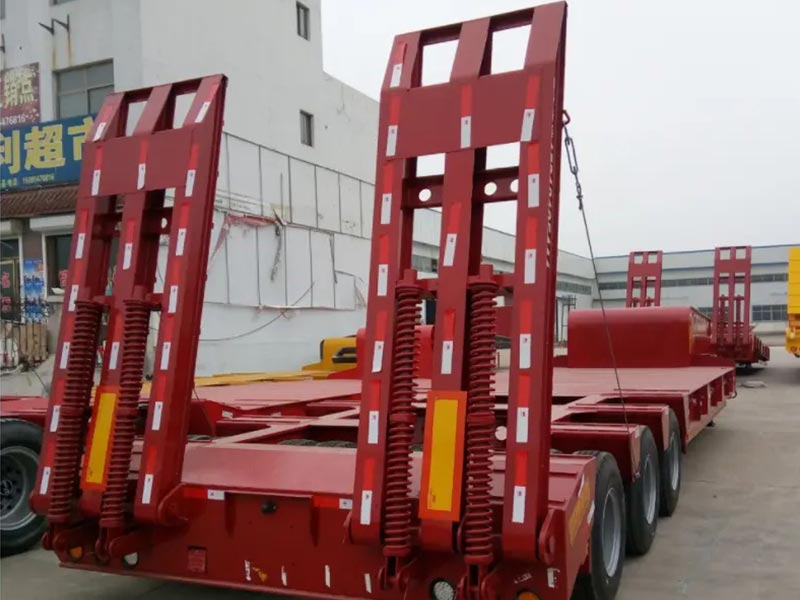

Lowbed Trailer
- Axle:3* 13 tons capacity, FUWA brand
- Landing legs:28T, single action, outside have reduction box.
- Tire specs:8.25R20, 13pcs
- Number of wheel:13 pieces
- Leaf Spring:6 pairs, 10pcs (16mm thickness)
Lowbed semi Trailer is a professional vehicle used for transporting tall, large and heavy objects, it has the advantages of low center of gravity, strong bearing capacity and high stability. Lowbed Trailer usually has a low chassis and adopts a flat design, which can minimize the height of the tractor and trailer, lower the transportation center of gravity, and ensure the safety of cargo transportation.
|
Dimensions:
|
Outside dimension
|
16800*2800*1700 mm (climbing ladder height excluded)
(The final dimensions depend on the final design drawings)
|
|
Frame:
|
Design/welding technology
|
Heavy duty and extra durability designed;
|
|
Main beam
|
520mm height main beams
Top Flange thickness 20mm,
Bottom Flange thickness 20mm,
Middle Flange thickness 12mm;
|
|
Flatbed
|
Bottom is 4mm pattern steel plate, side beam 25# channel steel.
|
|
OEM parts:
|
Axle
|
3* 13 tons capacity, FUWA brand
|
|
King Pin
|
90# king pin, exchange type
|
|
Suspension
|
Mechanical steel suspension
|
|
Leaf Spring
|
6 pairs, 10pcs (16mm thickness)
|
|
Landing legs
|
28T, single action, outside have reduction box.
|
|
Tire specs
|
8.25R20, 13pcs
|
|
Rim
|
6.5-20, 13pcs
|
|
Number of wheel
|
13 pieces
|
|
Brake system
|
Four double brake chamber, two single chamber
|
|
Electrical:
|
LED light
|
|
Others:
|
|
1pc Tool box, inside the goose neck, 2 pcs spare tyres, 1 pair heavy duty climbing ladder. Same width for front and rear loading
platform.
|
