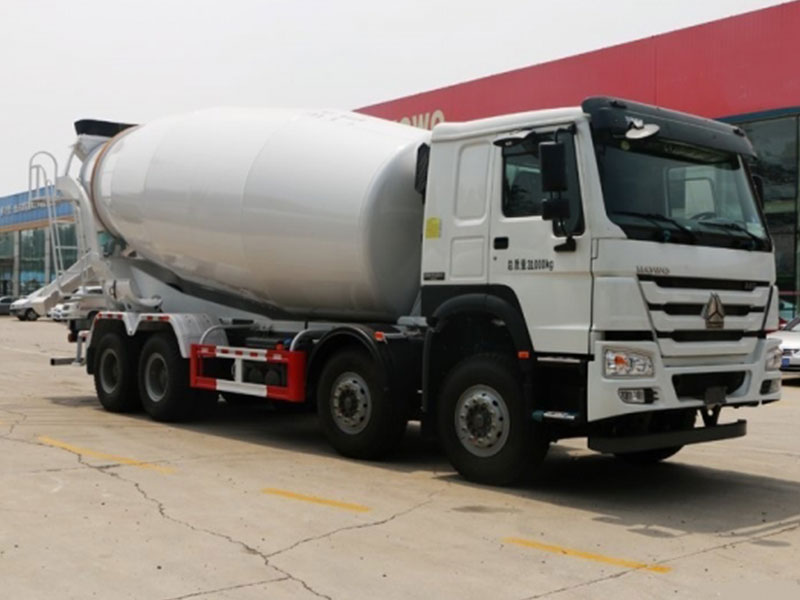

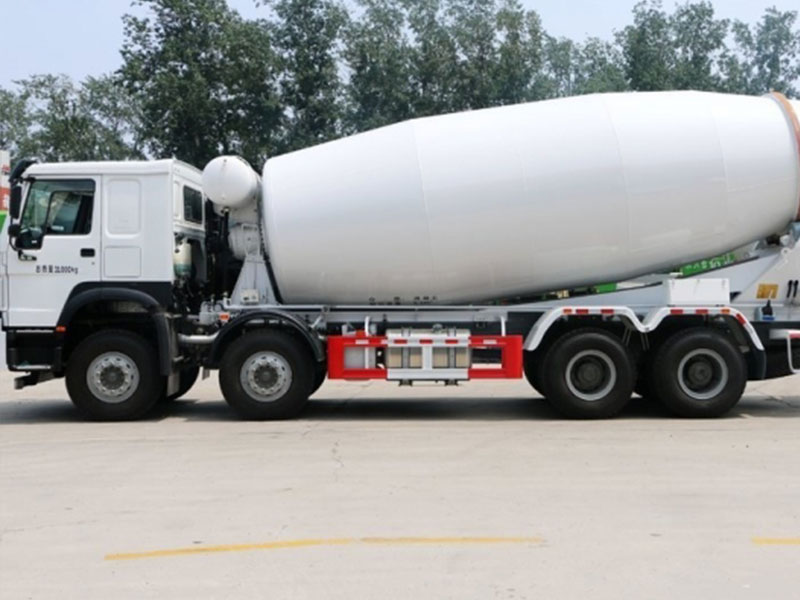

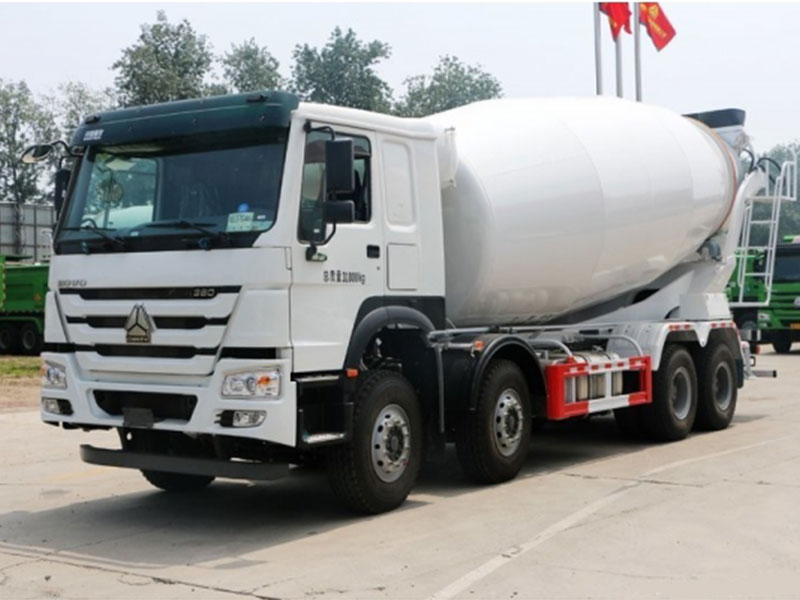

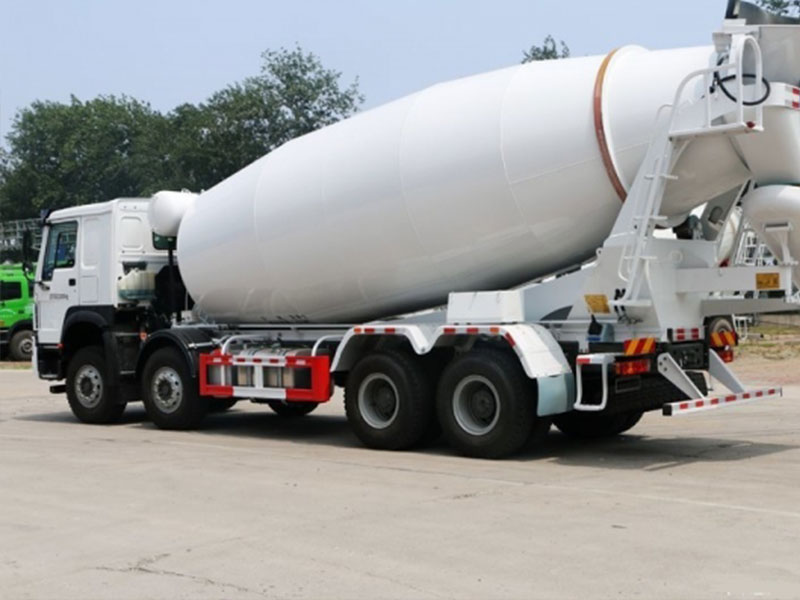

Howo Concrete Mixer Truck
- Drive mode:6×4
- Mixing capacity(m³):12
- Payload(Kg):16565
- Curb weight(Kg)/G.V.W(Kg):14305/31000
- Max. power(Kw/rpm):250/2200
This 6×4 12m3 Howo Concrete Mixer Truck is manufactured with world-class technology and craftsmanship, equipped with an efficient engine and gearbox, which greatly improves driving stability and load capacity. At the same time, this Mixer Truck is also combined with an advanced hydraulic system to achieve uniform mixing of concrete. No matter what kind of concrete mixing job you need to do, this Howo concrete mixer truck can ensure your project runs smoothly.
|
Specification
|
|
Drive mode
|
6×4
|
|
Engine
|
Model
|
Cummins 340-30
|
|
Type
|
6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
|
|
Max. power(Kw/rpm)
|
250/2200
|
|
Max. torque(N.m/rpm)
|
1350/1400
|
|
Displacement(ml)
|
8900
|
|
Type of fuel
|
Diesel
|
|
Compression ratio
|
(16.6±0.5):1
|
|
Cab
|
D310G
|
Single berth, Airbag seat, central lock, power window, AC
|
|
Gearbox
|
Model
|
FAST 9JS150T-B
|
|
Max.torque(N.m)
|
1500
|
|
Clutch
|
Φ430mm
|
diaphragm spring clutch
|
|
Frame Height×Width× Thickness(mm)
|
300×90×(8+8) mm double floor vehicle frame.
|
|
Frame width 940 (front ), Frame width 810 ( rear )
|
|
Tyre
|
Size
|
11.00-20
|
|
Air conditioner
|
A/C
|
|
Dimensions
|
Overall dimension (mm)
|
10520×2500×3990---105.2CBM
|
|
Wheel base (mm)
|
3800+1350
|
|
Front/Rear tread(mm)
|
2027/2027
|
|
Appr./Depa. angel (°)
|
30/18
|
|
Min. ground cleanrance(mm)
|
250
|
|
Mass
|
Payload(Kg)
|
16565
|
|
Curb weight(Kg)
|
14305
|
|
G.V.W(Kg)
|
31000
|
|
Performance
|
Max. speed(Km/h)
|
80
|
|
Max. gradeability(%)
|
40
|
|
Min. turning diameter(m)
|
23
|
|
Fuel consumption(L/100Km)
|
38
|
|
Special function
|
Mixing capacity(m³)
|
12
|
|
Angel of inclination of mixing drum(°)
|
13
|
|
Geometric volume(m³)
|
16.64
|
|
Filling ratio(%)
|
58
|
|
Feeding speed(m³/min)
|
≥3
|
|
Discharge speed(m³/min)
|
≥2
|
|
Residual ratio(%)
|
＜0.8
|
|
Collapsed degree range(mm)
|
40-230
|
|
Hydraulic pump
|
Sao Danfes 75
|
|
Hydraulic motor
|
Sao Danfes 75
|
|
Decelerator
|
PMB6.5
|
