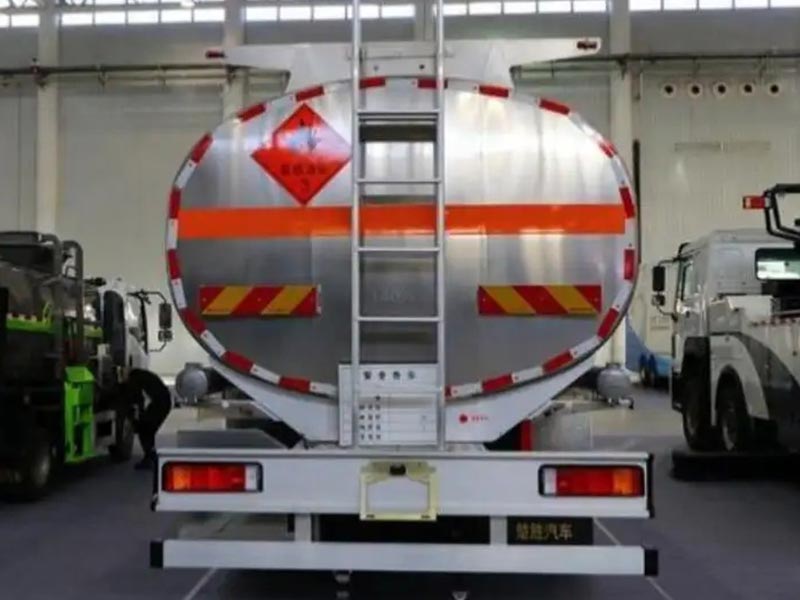

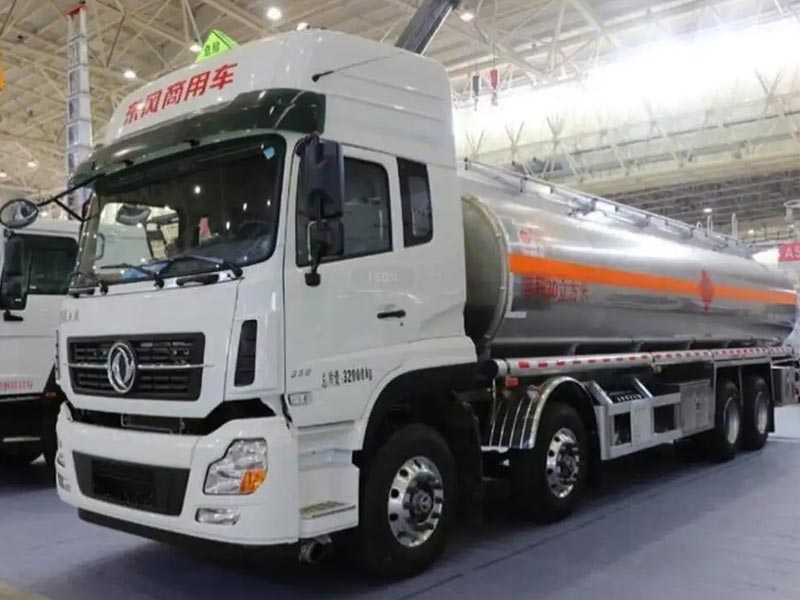

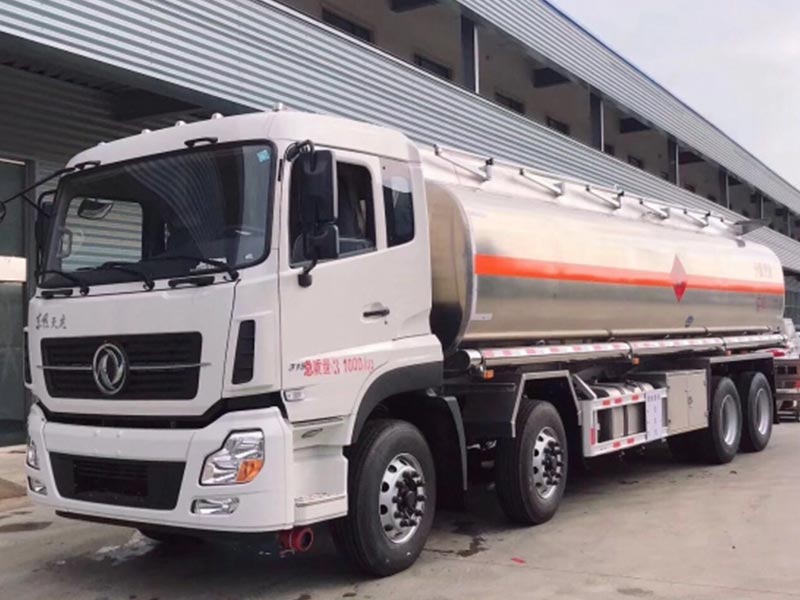

Fuel Tank Truck
- Price:$11,150.00~$14,950.00
- Type of fuel:Diesel
- Model:8JS118T-B
- Max.torque(N.m/rpm):1180
- Effective Volume(m³):20
Dongfeng 6×4 Fuel Tank Truck is made of high-quality steel, which has strong bearing capacity and excellent corrosion resistance. The tank body is well sealed and lined with polyethylene material to effectively protect the oil from external pollution. Equipped with international advanced hydraulic system, convenient and fast unloading. The cab adopts a new design, with high-temperature glass and air-suspended seats, making driving more comfortable.
|
Drive mode
|
6*4
|
|
Model
|
Cummins ISDe 245 30
|
|
Type
|
6-cylinder in line, turbocharging, inter cooling, electrical control common-rail engine
|
|
Max. power(Kw/rpm)
|
180/2500
|
|
Max. torque(N.m/rpm)
|
925/1200-1700
|
|
Bore /Stroke(mm)
|
107×124
|
|
Displacement(ml)
|
6700
|
|
Type of fuel
|
Diesel
|
|
Compression ratio
|
17.3:1
|
|
Model
|
8JS118T-B
|
|
Max.torque(N.m/rpm)
|
1180
|
|
Overall dimension (mm)
|
10960×2500×3200
|
|
Wheel base (mm)
|
5350+1300
|
|
Front/Rear tread(mm)
|
1986/1860
|
|
App./Dep. Angle(°)
|
20/13
|
|
Payload (kg)
|
13725
|
|
Curb weight(kg)
|
11045
|
|
G.V.W (kg)
|
24900
|
|
Overall dimension of tank (Length*Macro axis*Minor axis) (mm)
|
11500×2250×1420
|
|
Effective Volume(m³)
|
20
|
|
Tansport Medium
|
all kinds of oils, chemical liquids
|
|
Material of tank
|
carbon steel/stainless
|
