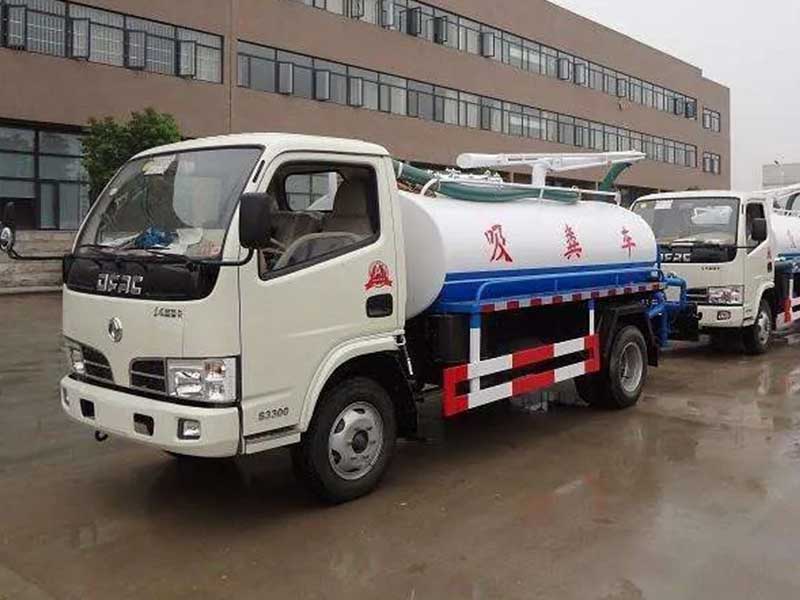

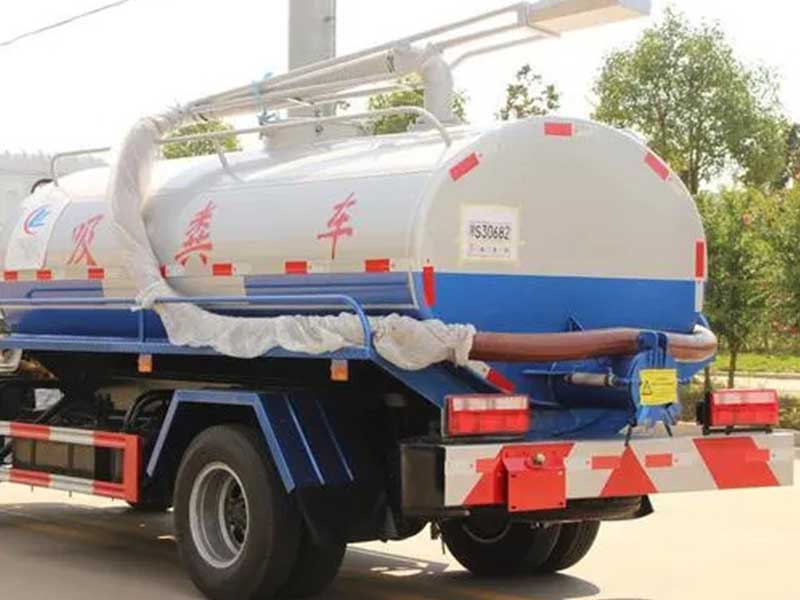

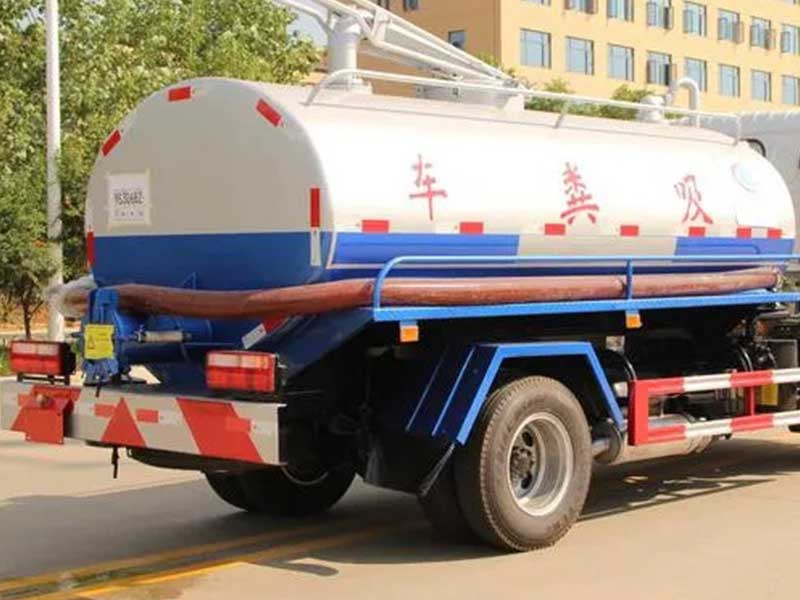

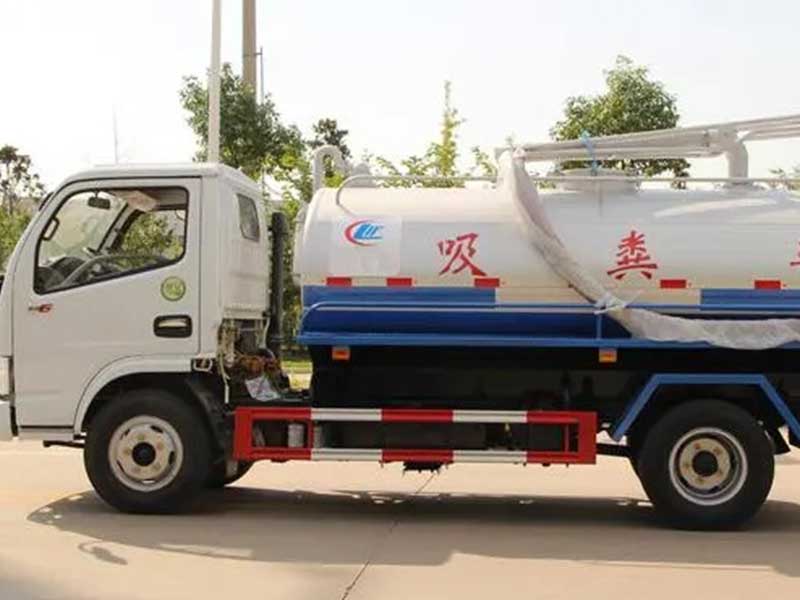

Dongfeng 4x2 5 cubic meter Sewage Fecal Suction Truck
- Price:$9,980.00~$12,920.00
- Tank dimensions:3500*1750*1150mm
- Tank volume:4750L
- Engine Model:4100QBZ
- Emission:Euro 2
Dongfeng 4x2 5 cubic meter Sewage Fecal Suction Truck is a kind of sanitation cleaning equipment specially used for cleaning large public facilities, urban roads and residential areas. It is made of high-quality materials, has efficient dirt suction function, high degree of automation, simple and easy operation, compact structure and strong stability. The sewage suction truck also has special functions such as cleaning the surface of the road, wet dust reduction, cleaning grooves, etc., which not only ensures environmental sanitation but also improves the overall appearance of public facilities.
|
Vehicle parameters DONGFENG
|
|
|
Overall dimensions
|
6388*2100*2550mm
|
Curb weight
|
4450kg
|
|
|
Tank dimensions
|
3500*1750*1150mm
|
Tank volume
|
4750L
|
|
|
Chassis parameters
|
|
Chassis model
|
EQ1080SJ8BDC
|
Chassis brand
|
DONGFENG
|
|
Overall dimensions
|
|
Wheel base
|
3300mm
|
|
Front/rear wheel track
|
1740/1586mm
|
Front/rear suspension
|
1150/1930mm
|
|
Approach/departure angle
|
20/14°
|
Maximum speed
|
80km/h
|
|
Chassis Manufacturer
|
Dongfeng Automobile Co.,Ltd
|
|
Cab
|
Configuration
|
Cab width: 1730mm，Single row cab，power-assisted steering，Camel battery (24V maintenance free)，Pneumatic brake system
|
| |
Color
|
White,other color is optional
|
|
Engine
|
Model
|
4100QBZ
|
| |
Emission
|
Euro 2
|
| |
Type
|
in-line,4-stroke,water-cooled,diesel engine
|
| |
Rated power
|
70KW/95hp 285N.m @3200rpm
|
| |
Displacement
|
3300ml
|
| |
Bore x stroke
|
100x118mm
|
| |
Manufacturer
|
Yunnei Group
|
|
Tire
|
Size
|
7.00-16
|
| |
Number
|
6+1 nos
|
|
Frame
|
188mm
|
|
Front axle
|
2.0T
|
|
Rear axle
|
4.0T
|
|
Drive form
|
4X2
|
|
Rated voltage
|
24V,DC
|
|
Transmissions
|
5 speed forward 1 reverse
|
|
Steering wheel
|
Left hand drive
|
|
If there is a slight change in the chassis parameters above, please take the actual product as the standard
|
|
Fecal suction tank structure parameters
|
|
Tank dimensions
|
3500*1750*1150mm
|
Tank volume
|
4750L
|
|
Tank material
|
Carbon steel
|
Tank thickness
|
5mm
|
|
Color and Logo
|
Optional
|
|
Standard configuration
|
Chassis,sub frame,5mm carbon steel fecal tank,8 meters fecal suction pipe, rotating arm, vacuum pump,oil and gas separator, water
vapor separator, anti overflow valve, observation tube, gravity flow valve Φ220mm.
|
