Product Name
|

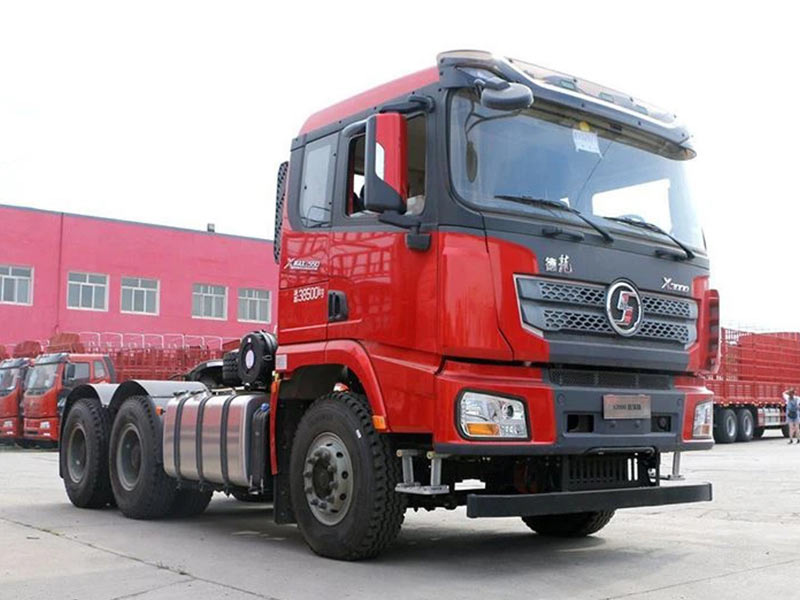

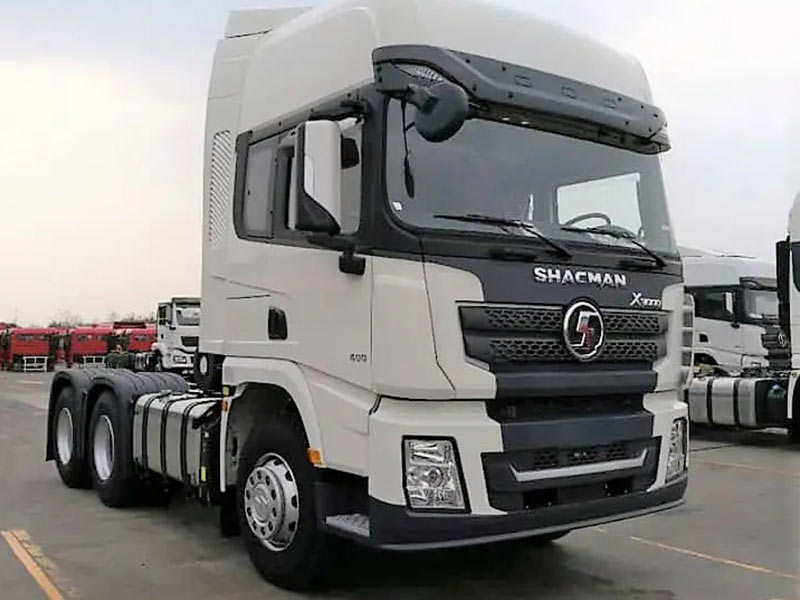

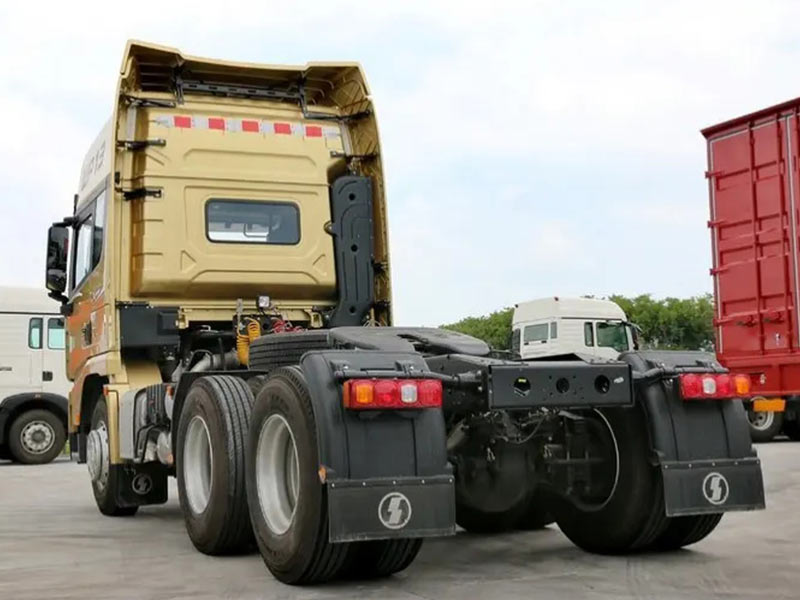

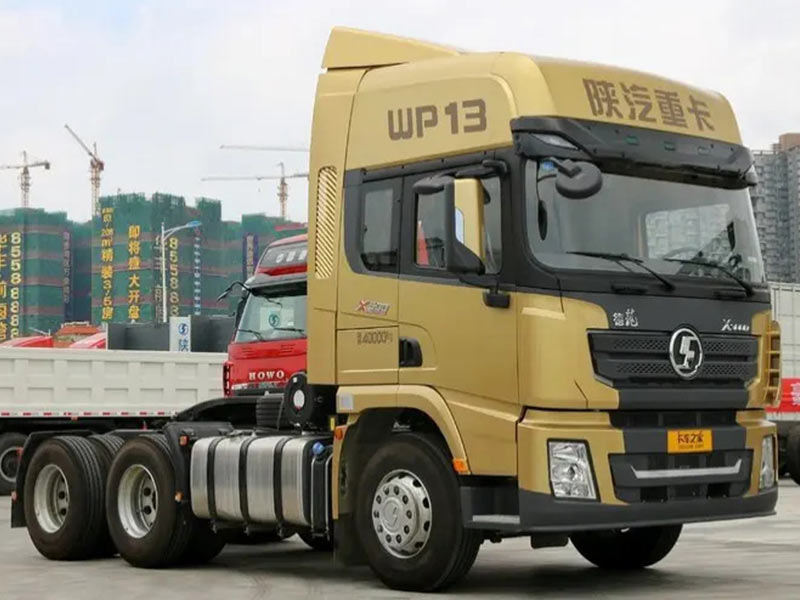

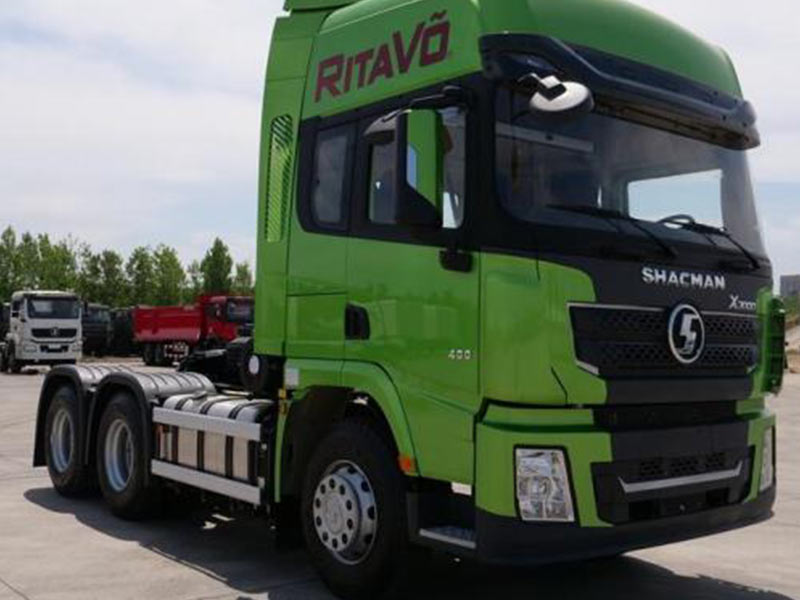

Shacman x3000
|
|
|
Type
|
6x4 Tractor
|
|
|
Chassis Dimensions(mm)
|
|
|
Overall chassis length
|
6940
|
|
|
Cab width
|
2500
|
|
|
Cab height (unladen)
|
3960
|
|
|
Wheel base
|
3300+1350
|
|
|
Front overhang
|
1480
|
|
|
Rear overhang
|
810
|
|
|
Vehicle weights(kg)
|
|
|
G.V.W
|
25000
|
|
|
G.C.W
|
49000
|
|
|
Curb weight
|
9580
|
|
|
Frame profile Dimensions(mm)
|
|
|
Frame width (front )
|
1080
|
|
|
Frame width ( rear )
|
800
|
|
|
Section height
|
300
|
|
|
Section width
|
90
|
|
|
Engine
|
Type
|
ISZ520 51
|
|
|
Emission level
|
Euro Ⅴ
|
|
|
Maximum power
|
520PS at 2300rpm
|
|
|
Maximum torque
|
2460Nm at 1100-1400 rpm
|
|
|
Number of cylinders
|
6
|
|
|
Displacement (lit)
|
12.98
|
|
|
Cylinder bore (mm)
|
130
|
|
|
Stroke (mm)
|
163
|
|
|
System
|
Water cooled,turbocharged,after cooled , cold start.
|
|
| |
| |
| |
|
Clutch
|
Type
|
SACHS
|
|
|
Plate's diameter
|
¢430mm
|
|
|
operating system
|
Hydraulic control with air booster, pulling
|
|
| |
| |
|
Gear box
|
Type
|
DT1425 OD(VOLVO-DONGFENG)
|
|
|
Number of gears
|
14 forward gears& 4 reverse ,synchronized
|
|
| |
|
Ratios
|
Forward:13.16，10.54，8.92，7.15，5.74，4.60，3.75，3.00，2.38，1.91，1.53，1.23，1.00，0.80, Reverse:12.09，9.69，3.22，2.58
|
|
| |
| |
|
Brake System
|
Full air brake system, split pneumatic circuit ； parking spring brake acting on rear axles , Engine brake，WABCO ABS.
|
|
| |
| |
| |
|
Cab
|
Sleeper cab,double bunks,forward control type,new face, all welded steel cab , Electrical cab tilting, front and rear mechanical
cab suspension ， adjustable driver’s seat, air conditioning system, electrical windows,, central lock.
|
|
| |
| |
| |
| |
| |
| |
|
Axle
|
Front
|
Elliot type, I beam section
|
|
|
Load capacity(ton):5.5
|
|
|
Rear
|
Single reduction ,tandem axle, with axle lock , ratio 4.10
|
|
| |
| |
| |
|
Load capacity(ton):10X2
|
|
|
Tyres
|
12R22.5
|
|
|
Suspension
|
Front
|
Leaf spring with shock absorber and stabilizer bar
|
|
| |
|
Rear
|
Leaf spring
|
|
|
Battery
|
Voltage (V) : 24
|
|
|
Battery capacity (A.h):165X2 or 180X2
|
|
|
Fuel
|
Type
|
Aluminum alloy fuel tank, with lockable cap
|
|
| |
|
Capacity
|
600lit
|
|
